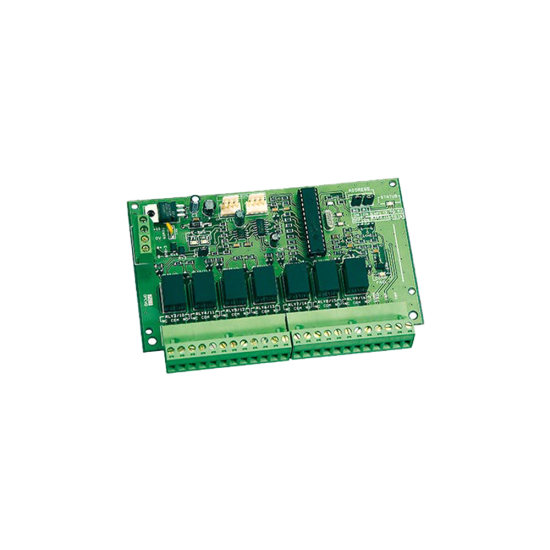

CA-A460-PNB

Awaiting delivery

Relay expansion module for CT-V900-A

Required for additional relay outputs. Each CA-A460-P adds 7 relays to those of the CT-V900-A , up to a maximum of 16 relays (2 x CA-A460-P + 2 CT-V900-A  on-board relays = 16 relays).

• PCB dimensions (L x W): 140 x 82mm.
• Adds 7 form-C relay outputs (NO/NC) to the CT-V900-A  controller.
• Maximum of two CA-A460-P modules per CT-V900-A  controller.
• Connects directly to the CT-V900-A  expansion bus.
• Connects to the controller at a maximum distance of 1220m.
• Outputs: 7 Form C relays rated at 5A/28V dc, NC/NO.
• Input voltage: 12V dc.
• Consumption: maximum 450mA.
• +5°C to +55°C
