MINERMO

Microwave barrier

MINERMO

Awaiting delivery

Microwave barrier

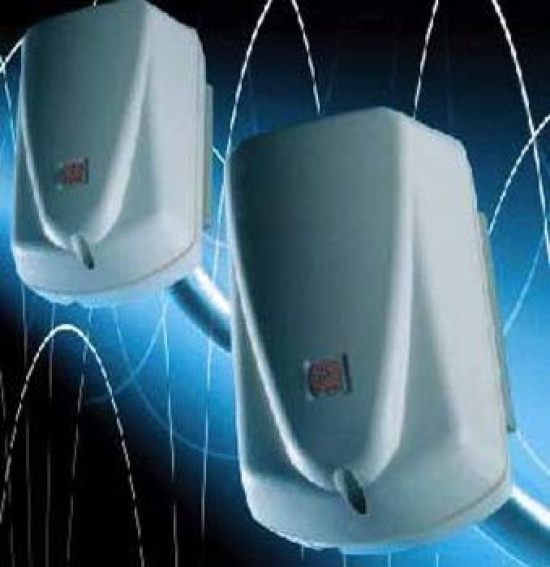

MINERMO microwave barriers are suitable for external applications providing a protective detection field of up to 15m.

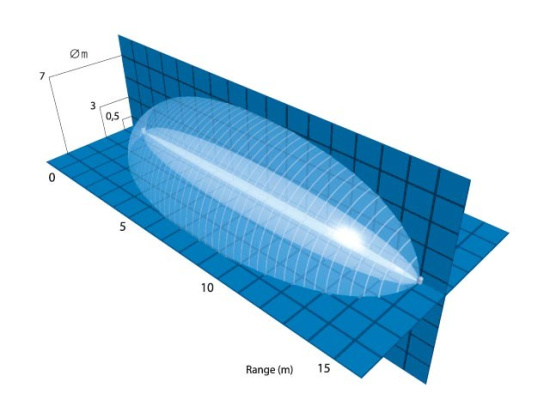

MINERMO is a bi-static intruder detector incorporating planar technology for maximum stability and excellent volumetric protection, despite its short range. (see diagram) in addition to its many advanced technological features, minermo detectors also look good. Their modern design is both pleasing and unobtrusive, measuring just 12.5 × 7.5 × 5cm, they are the smallest external microwave detector available today!

MINERMO is also available to suit internal applications, with a maximum range of 20m.

MINERMO is simple to install and set-up.
An auto-alignment feature, including a multi-coloured alignment led simplifies this process. minermo is also compatible with the STC95 test and calibration meter, available optionally, which features a visual display and audible alarm for walk testing the protected field.

MINERMO detectors are supplied boxed with full written instructions in english.

• Range: 15 m • Frequency: Varies according to country • Power supply: 13,8 Vdc • Consumption: 70 mA (Tx + Rx) • Temperature: -35°c/+65°c • Channels: 4 • Dimensionis/ Weight: 125 × 75 × 50 mm / 940 g /TX+RX) • Outputs: 3 relays Alarm, Tamper, (Fault only “ES” vers.)
