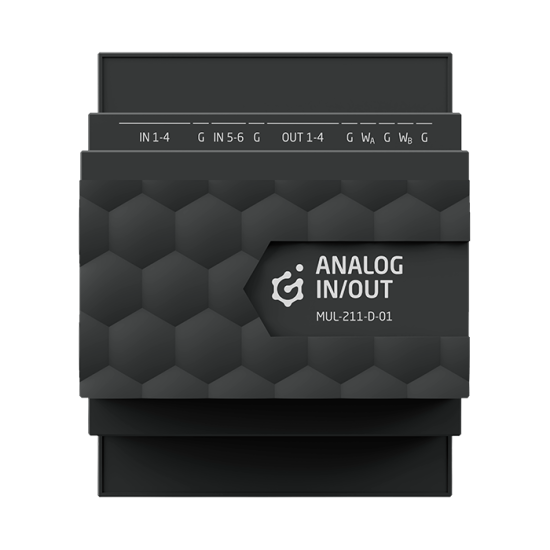

4 digitalna ulaza 0-10V, 2 digitalna ulaza 0-5V, 4 digitalna izlaza 0-10V, modul se kontroliše od strane CLU kontrolera



 PROPERTIES

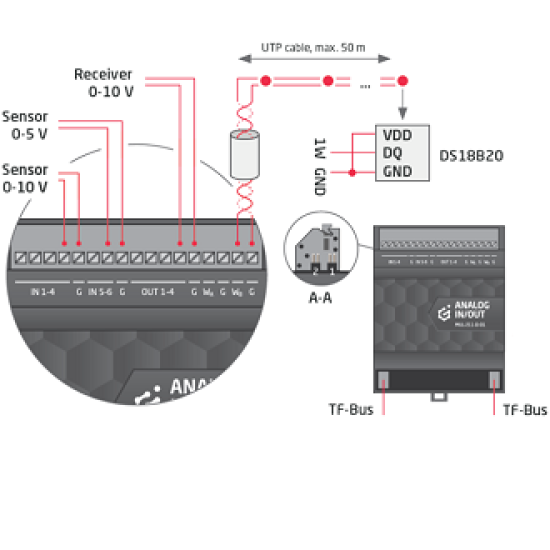

support for 0-10V, 0-5V analog standards
support for 0-20 mA current sensors
support for 1-Wire technology

 TECHNICAL INFORMATION
DC power supply: 24 V
maximum power consumption: 0.48 W
maximum device current(@24V): 20 mA
maximum wire cross section: 1.5 mm²
maximum input voltage for IN1-4: 10 Vdc
maximum input voltage for IN5-6: 5 Vdc
maximum output voltage for OUT1-4: 10 Vdc
maximum number of supported 1-wire sensors: 16
maximum output current for OUT1-4: 10 mA
weight: 105 g
size (DIN): 4
dimensions (h/w/d): 58/71/90 mm
operational temperature range: 0 – 45 °C





  •
