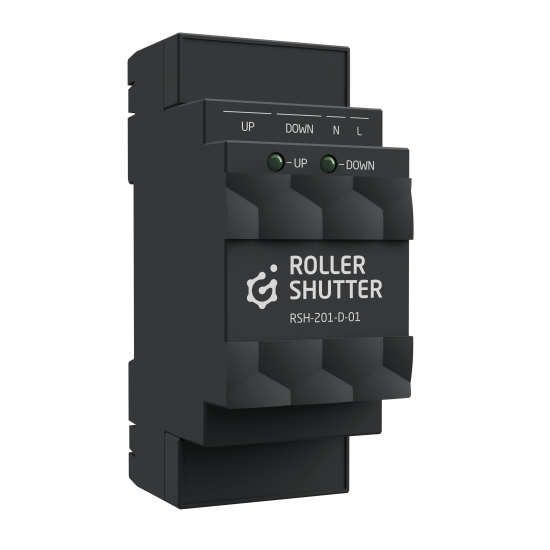

RSH-201-D-01
Roller Shutter x1 modul, DIN, TF-Bus
RSH-201-D-01
Isporuka na čekanju
Roller Shutter x1 modul, DIN, TF-Bus
Modul za upravljanje različitih tipova električnih roletni 230Vac. Kontroliše se od strane CLU kontrolera.
TECHNICAL INFORMATION
DC power supply: 24 V
maximum power consumption: 1.2 W
maximum device current(@24V): 50 mA
maximum wire cross section: 2.5 mm²
rated load voltage: 230 Vac or 24 Vdc
minimum switching power: 1W
maximum switching power for AC1 class devices: 3600 VA
relay type: NO, inrush
weight: 165 g
size (DIN): 2
dimensions (h/w/d): 58/36/90 mm
operational temperature range: 0 – 45 °C
