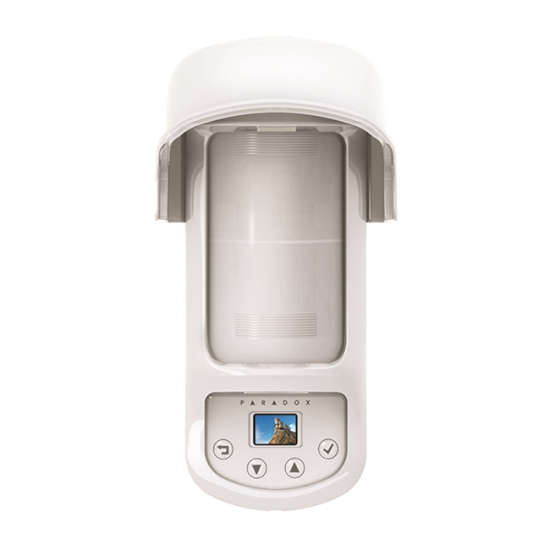

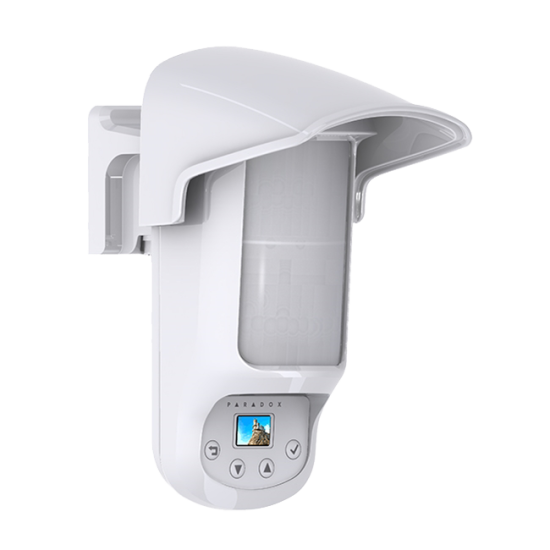

NVX80

Indoor / Outdoor Motion Detector for Harsh Environments

Available

Indoor / Outdoor Motion Detector for Harsh Environments

Paradox SeeTrue™ technology significantly improves detection response for both IR and microwave (MW) sensor technologies greatly decreasing false alarms
Paradox Active IR anti-mask recognizes the degradation of lens clarity and objects blocking the main lens within 30 cm of the detector
8 detection channels: 2x Quad PIR for short and long range detection (4 channels)
- 1x Independent Quad PIR for Creep Zone Detection (2channels)
- 2x Quad PIR for short and long range detection (4 channels)
- 1× 2-Output MW antenna (2 channels)
MW Anti-mask allows for detection of close proximity movements (0.75 m – 2 m / 2.4 ft – 6.5 ft) – this close proximity range is adjustable
Paradox’s proven Pet Immunity active for false alarm rejection in the short and medium detection ranges (note: Creep Zone detection neutralized)
3rd generation Paradox digital detection technology delivering improved detection and false alarm rejection
15 m x 15 m / 50 ft x 50 ft coverage
3 m x 3 m / 10 ft x 10 ft Creep Zone protection
Easy Slide installation
Color OLED display featuring menu-driven, intuitive screens
Comprehensive diagnostics: individual testing for PIR, MW and anti-mask technologies
SoloTestTM for easy walk test execution
Three configurable relay outputs – these outputs are also reported by the Digiplex EVO bus
Sleek, vandal-resistant design and tough construction
EN 50131 Grade 3
