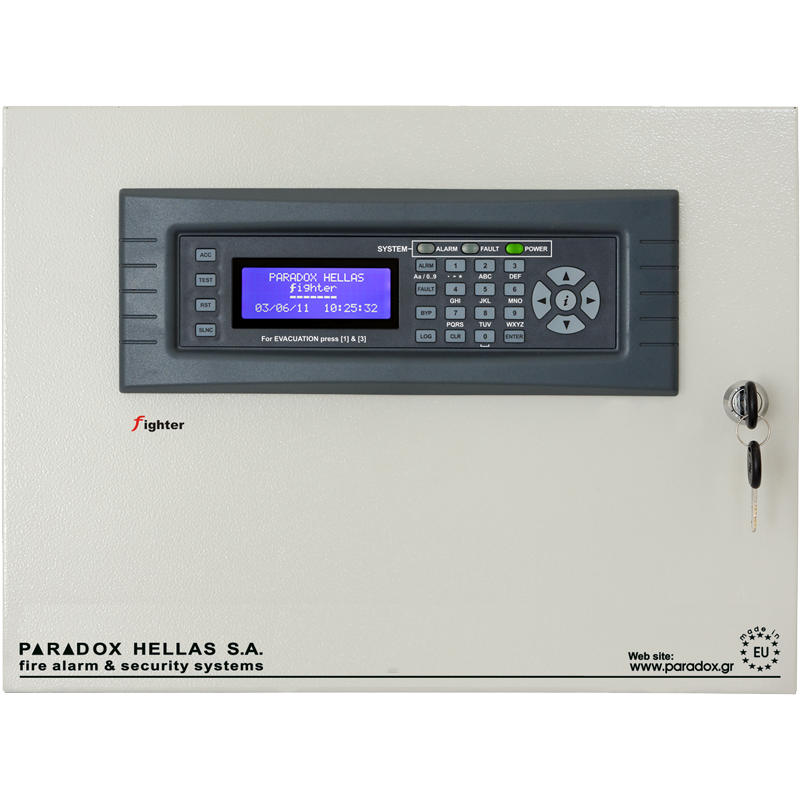

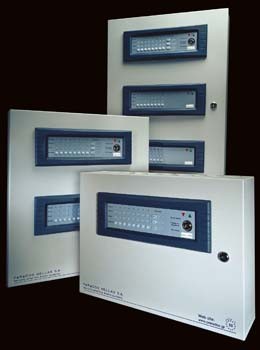

Menu driven conventional fire alarm and extinguishing panel using 4-wire Bus technology expandability RS-485, permitting flexible and cost optimized installations. 8 to 72 analogue conventional detector inputs, using modules interconnected with 4-wire BUS. Up to 18 extinguishing areas with the full system setup. The system uses 4 zones and 4 relays to produce a very reliable alarm detection and commence a sequence of relay activations. Mainly used to drive extinguishing systems. Any group of 4 zones on any module along with their corresponding relays may be programmed as an extinguishing area.
new

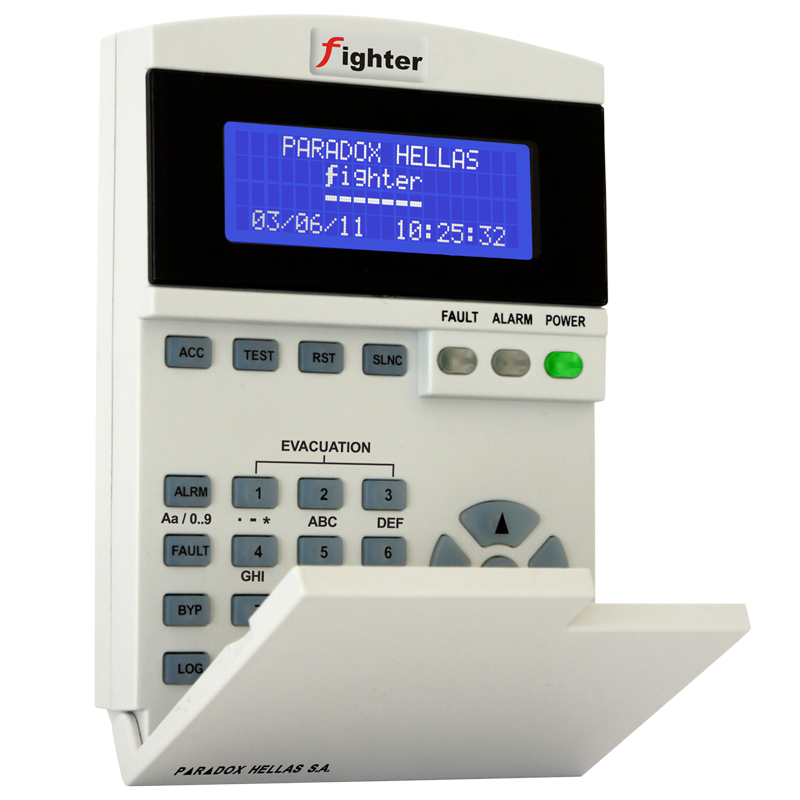

• User-friendly Alphanumeric keypad - repeater with 80 characters (4 x 20) blue LCD display.
• Menu-driven programming for easy system setup (installer).
• Menu-driven user-friendly operation for the end user.
• 3 LEDs indicate the status of the power supply, alarms and faults of the system.
• Backlit button gives access and indicates access levels 2 and 3.
• TEST button activates all visual indicators for user check.
• Dedicated system (zones) reset button.
• Dedicated Silence button for buzzers and external sirens also indicates active silence conditions.
• Easy user information and system status with clever filtering through 4 buttons. Filtering alarms, faults, bypasses and log events creates easy to comprehend uncluttered display screens.
• 12 alphanumeric buttons for data input during system programming (eg zone’s descriptions).
• Easy menu navigation with dedicated arrow buttons.
• Info button gives on screen short help for many system parameters and screen items.
• Evacuation Command with keys combination (1 + 3 key buttons )
• Interconnection via RS-485 BUS system.
• Compatible with the Fighter system.
• Dimensions (HxWxL [cm]): 11 x 15.5 x 2.5 cm
Ordering code: PH.KP.FIT.08


Fighter FRTCP-IP...

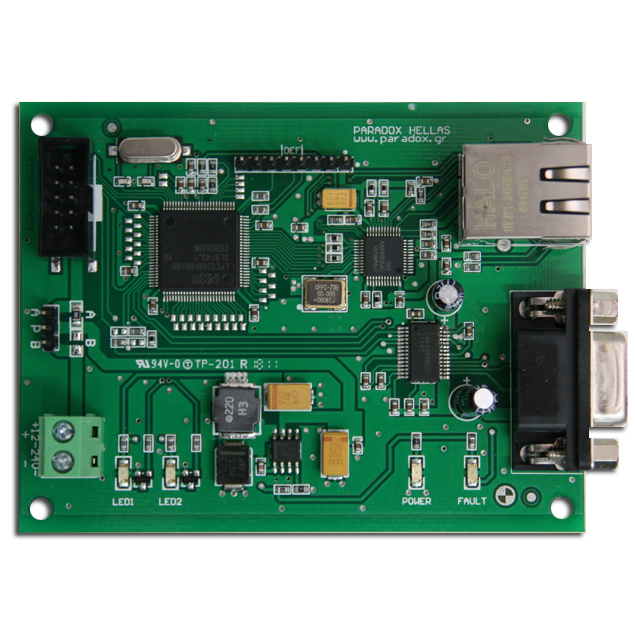

TCP/IP - RS232 communication module.

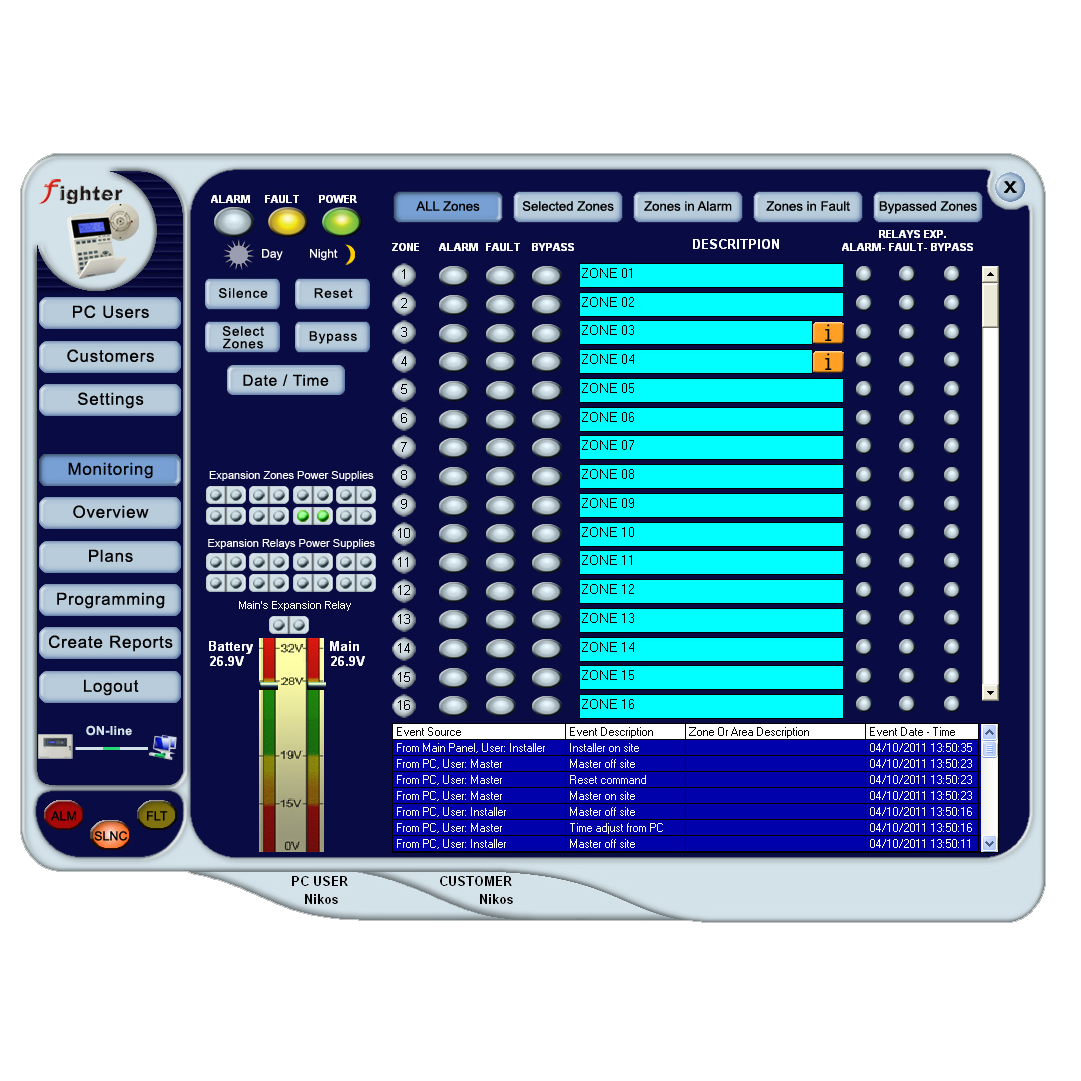

The FRTCP-IP module connects directly to the main board of the Fighter panel. Provides full access and control of the panel, locally via the serial RS232 connection or via internet (TCP / IP) using any PC running the specially designed software named Fighter ProVision in real time.
The programming of communication parameters of the FRTCP-IP module is done through the menu on any connected Fighter’s keypad.
Power supply
10 pin box connector 5VDC or 12-24 VDC
2 way terminal block 12-24VDC
Consumption 250mA MAX
Connections Ethernet, Serial RS232
RS232
Ground Isolation 50 V
Connector Female D9
Ethernet
Ground isolation Complete galvanic isolation
Connector RJ45
Ethernet type 10/100 Mbps
Indications (Leds)
Power Lit when the device is powered
Fault Indicated that isolation voltage is more than 50 V
LED1 Remote client is connected.
Others
Dimensions 10.5 x 7.5 cm
Ambient conditions 0-50°C, 95% max RH
Ordering code: PH.FI.TCP.IP


The Matrix 2000 series conventional fire alarm panels consist of two basic units (mainboards) of 4 and 8 zones. These units, with the addition of 8 zo


PH.ZE.FIT.08 Fighter zones expansion board (PCB) PH.RE.FIT.08 Fighter relays expansion board (PCB)

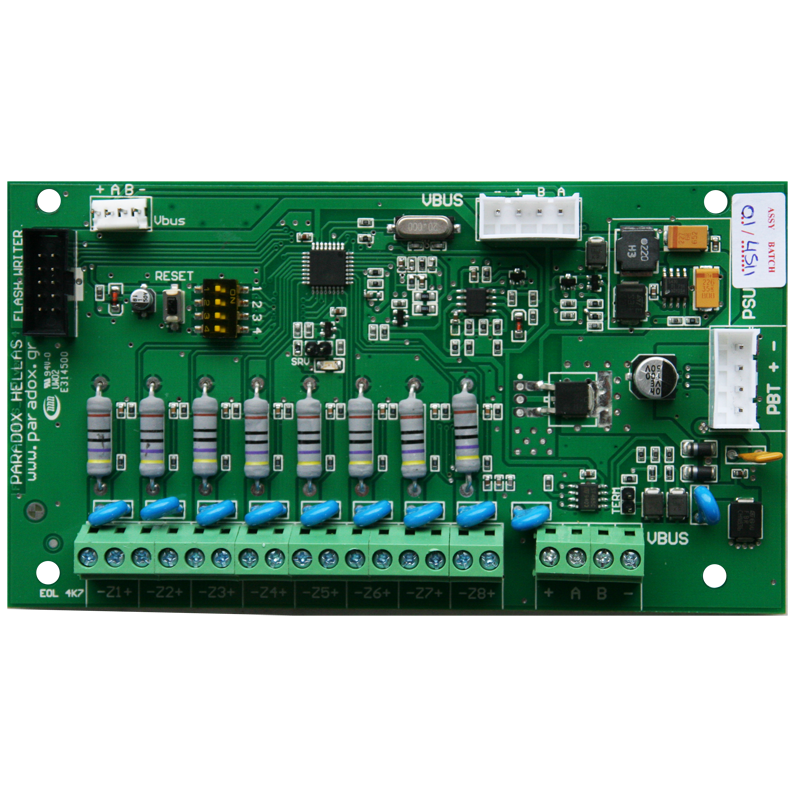

Zone expansion board (8 zones).
Zone termination resistors: 4,7Κ / 0.5W.
Stand-by curent 60mA.
Automatic module detection upon installation.
Interconnection of all units with RS-485 BUS system




2 fire detection zones
Up to 32 detector zone
2 pcs. monitored siren outputs with programmable delay up to 10 minutes
General alarm output "Fire"Exit "Fault"
2 pcs. Additional monitored 30V power outputs
