FPKX15DTAM2

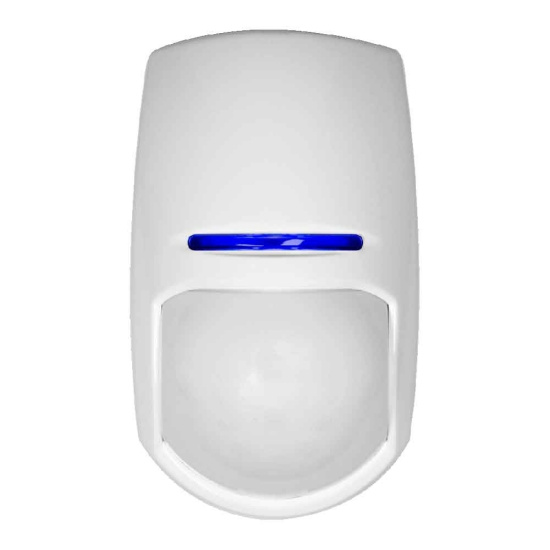

Combined motion sensor MW+PIR 10.525 GHz complete with stand, Grade 3
FPKX15DTAM2
Available
Combined motion sensor MW+PIR 10.525 GHz complete with stand, Grade 3
- Patented anti-masking technology
- Separate LED indication: Microwave element, PIR element, Alarm
- Dual technologies
- Security Grade 3, Environmental class II
- Selectable EOL resistors (End Of Line)
- Blue Wave
- Digital temperature compensation
- Tamper proof stand included
- 3D optical technology - “Creep” zone
- Two-element pyroelectric sensor
- Maximum range: 15m
- Detection speed: 0.2 - 2.5m / s
- Coverage angle: 85 degrees
- MW: 10.525 GHz
- White light filter: 6500 Lux
- Ultraviolet light filter
- Certified mounting height: 2.4 m
- Certified operating temperature: -10°C to +40°C
- Physical dimensions (H x W x D): 117 x 69 x 50 mm
- Weight: 125g without mounting stand
- ABS plastic
- Operating voltage: 9-16V DC/ 13.8V DC
- Current consumption in mode 24 mA @ 12V (Min), 30mA @ 12V (Max)
- Relay outputs: 50mA 60 VDC, 42 VAC (RMS)
- Tamper switch: 12V, 50mA
- EN certificate EN50131-2-4: 2008, EN50131-1, PD6662: 2017
- Certificate number: IMQ CA12.01176
