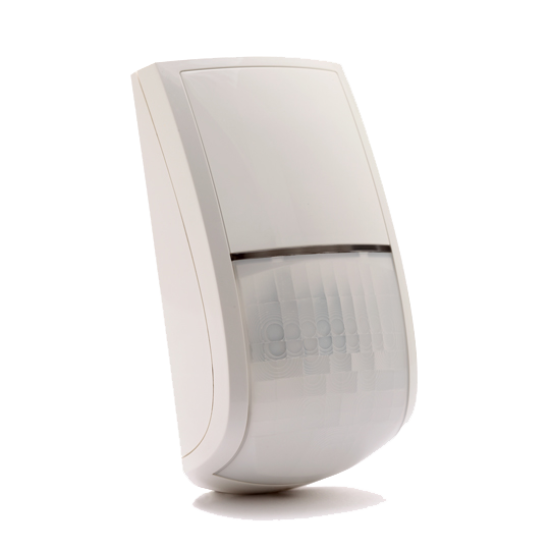

RK500Q0G3

Awaiting delivery

Volumetric passive infrared sensor - two PIR sensors, Grade 3

RK500Q0G3 is part of the most advanced detector series BWare™ of RISCO Group. These elegant and easy-to-install detectors are ideal for commercial, institutional and high-end residential installations. The RK500Q0G3 is extremely reliable thanks to a combination of microwave K-band and other unique detection technologies. Convex lens provides improved detector performance and gold-plated cover and wall tampers for higher reliability.

• Sleek sleek design with single convex lens
• Two dual PIRs element
• Range: 15m; 90° digital detector coverage angle
• Grade 3, Class II
• Active IR anti-masking
• Built-in jumper-selectable EOL resistors
• Intelligent digital signal processing
• Inner cover protecting PCB
• Temperature compensation
• Gold-plated lid and wall/corner tampers
• Mounting height: 2.1m- 3.3m
• Current consumption - 14mA at 12VDC (typical)/ 34mA at 12VDC (max)
• Operating voltage: 9-16VDC
• RF immunity: 10MHz to 3GHz according to EN50130-4
• Operating temperature: -20 °C to 55 °C
• Storage temperature: -20 °C up to 60 °C
• Dimensions: 120x64x40 mm
• Weight - 120 gr
