996520

Awaiting delivery

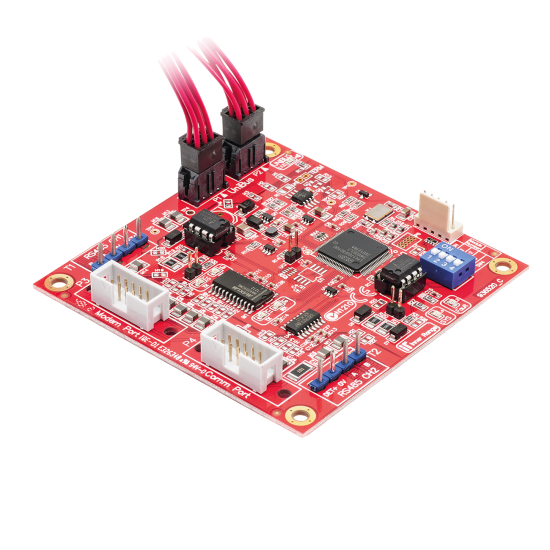

UniBus UART for Integriti

• 2 Software configurable UART Ports
  • - Channel 1 - RS-232 Modem / RS-485 Port
  • - Channel 2 - RS-232 Comm / RS-485 Port
• DIP switch addressable module number 1, 2, 3 or 4
• DIP switch selectable CH1/CH2 mode, RS-232 or RS-485
• LED indication of CH1 & CH2 RX & TX activity
• LED UniBus status indicator
• 2 LED system status / fault indicators
• UniBus loop-through connectors
• Over-The-Wire firmware upgradable
• Integriti “C” size footprint 94 x 94mm
• Can be installed above other “C” size PCB’s**
• A Snap off strip is included to allow installation above Integriti “B” size PCB’s**

**35mm standoff kit required - Part Number 999009
