• Robust design
• Low current consumption
• Easy to install
• Xenon beacon technology
• Maximum 110 dB(A) at 1 m (dependent on tone selected)
• 32 user-selectable tones
• White version available

Description

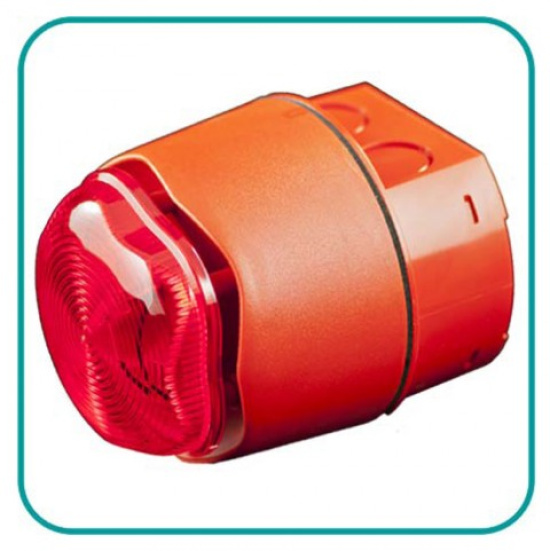

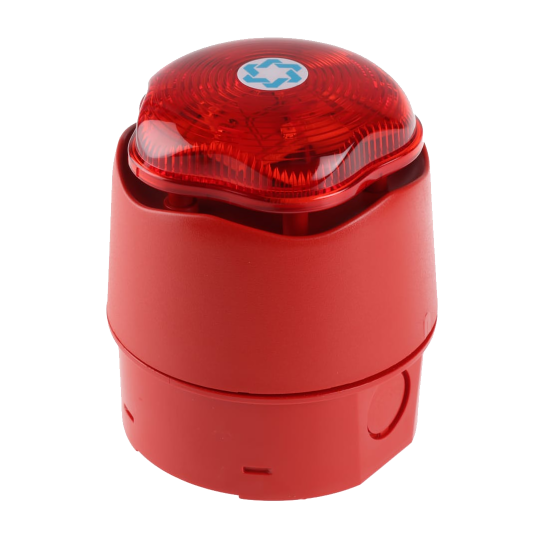

The BANSHEE EXCEL LITE IP66 combines the modern aesthetics of the multi-tone sounder and the
very latest strobe technology to create an extremely efficient strobe/sounder

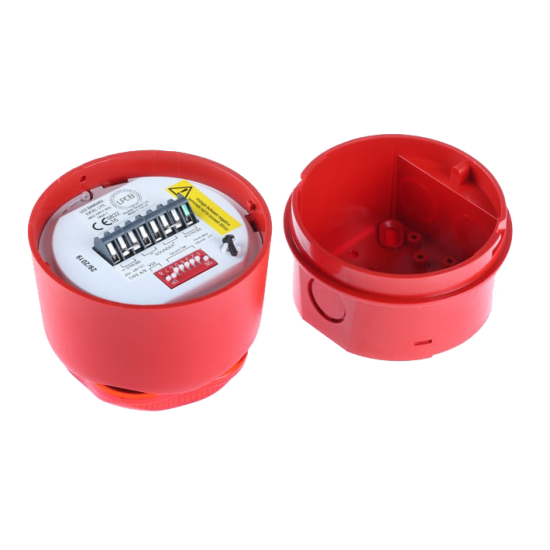

combination. It is easily installed with robust terminations that can accept 2.5 mm2
cables and a push and twist bayonet-fitting base.
Available in a wide choice of lens colours*, the BANSHEE EXCEL LITE IP66 will suit the majority of
fire and security needs where conventional sound requires the backup of a visual alarm.

Specification

• Ordering codes: BANSHEE EXCEL LITE IP66
• Operating voltage: 9 – 30 V dc
• Sounder current consumption (dependant on tone selected): min 6 mA/ max 39 mA
• Strobe
• Current consumption
• Nominal flash energy: 1 W
• Flash rate: 60/minute
• Lens colours available Red
• Operating Temperature Range: -20^oC to +55^oC
• Maximum Sound Output (at 24 Vdc)(dependant on tone selected):110 dB(A) at 1 metre
• Maximum Humidity: 75%RH – Non Condensing (at 40^oC)
• IP Rating: IP45
