CORAL

Awaiting delivery

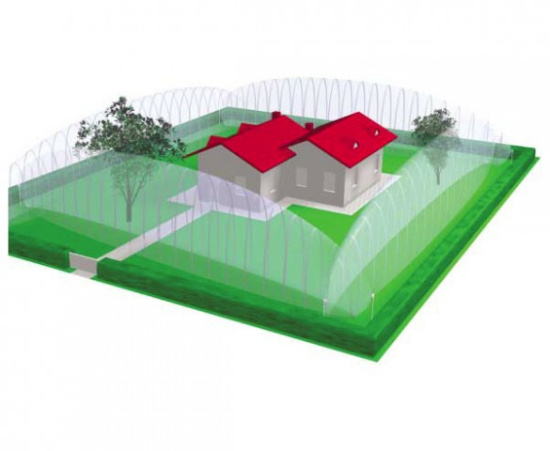

Outdoor Microwave Barrier

Equipment supplied: Transmitter and receiver head with space to accomodate a 12V 24h backup battery, power supply and charger included. A new generation trasformer 30VA 230-19Vac is available.

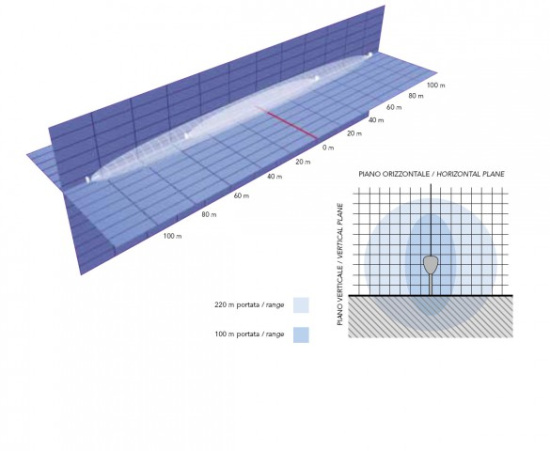

• Range: 100, 220 m
• Frequency: From 9,2 to 10,6 GHz conform to CE, USA e Canadian standards.
• Channels: 16 crystal controlled
• Temperature: -35°C /+65°C
• Alarm outputs: 3 solid relays for Alarm, Fault and Tamper
• Alternate power supply: 19 Vac, 24 Vac
• Direct power supply: 13,8 Vdc, 24 Vdc
• Current consumption: 60 mA (TX+RX)
• Anti-masking: Settable
• Alignment: Instrument incorporated
