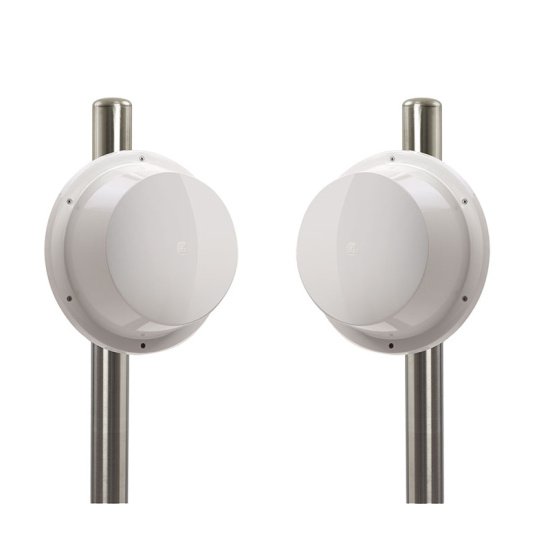

Microwave barrier 120m (TX+RX). ERMO482/80, 120, 200 models use a 200mm parabolic antenna that creates a narrow field, more useful when available space is limited but distances are long.

p>

The ERMO482 microwave barrier consists of a receiver and a transmitter that are installed opposite each other, creating a protective zone, the dimensions of which change depending on the type of antenna, the distance between the heads and the sensitivity settings. The ERMO482 is available with ranges of 50, 80, 120 and 200 meters.

The ERMO482/120 model has a 200mm parabolic antenna that produces a narrow field, more useful when available space is limited, but distances are long.

The ERMO482 is a detector specially designed for outdoor use and has the ability to be set up in all types of atmospheric conditions. It has sensitivity and integrated controls for target discrimination. It also has a system of 4 preset modular codes (channels), which system protects the interface at crossing points.

ERMO482 uses new generation microwave components that are extremely stable thanks to technologies such as “ strip line”, “gas fet”, “dro”, together with the parabolic antennas and reflector. Everything in ERMO482 is designed and manufactured inCIAS' own laboratory.

• Range: 120m
• Frequency: x-band, certified in many countries and conforming to Europe, USA and Canada standards
• Power supply: 19vac/13.8vdc/24vdc (battery charger 13.8vdc)
• Consumption: tx 100 ma – rx 100 ma (13.8 vdc)
• Temperature: -35°c/+65°c
• Channels: 4 on-off
• Dimensions/Weight: Maximum ø – 310 mm, depth 260 mm
• Programming: Electronic, via STC95
• Outputs: Alarm relays, tamper

"
