KE550HS23/1E-Dca

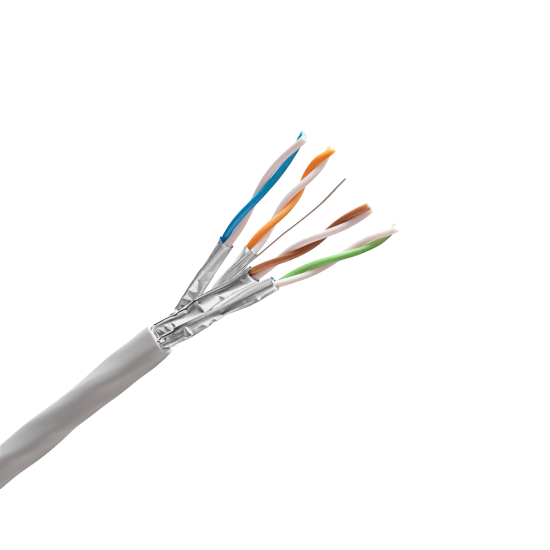

STP cable, Category 6A, 550 MHz, LSOH, Euroclass Dca - s2, d1, a1
KE550HS23/1E-Dca
Available
STP cable, Category 6A, 550 MHz, LSOH, Euroclass Dca - s2, d1, a1
- STP cable for building structured cabling systems KE550HS23/1E-Dca
- Category 6A, 550 MHz,
- LSOH halogen-free sheath
- Euroclass Dca - s2, d1, a1
- complies with the Construction Products Regulation (CPR) EU No. 305/2011 and reaction to fire requirements according to the harmonized standards EN 50575: 2014+A1: 2016

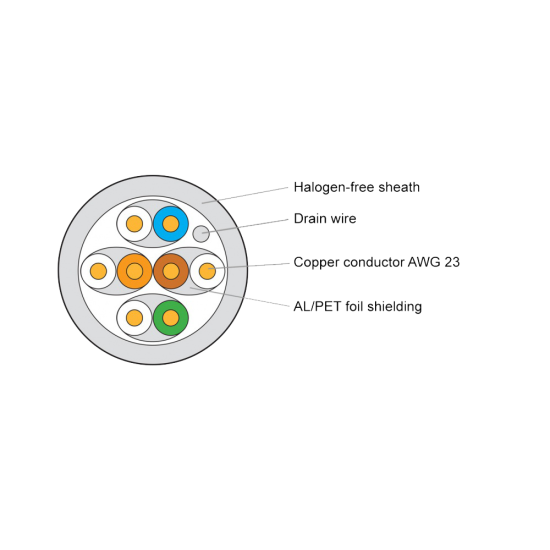

- each pair individually shielded with AL/PET foil,
- enables transmission of all high-speed protocols including 10GBASE-T
- tested in bandwidth up to 550 MHz

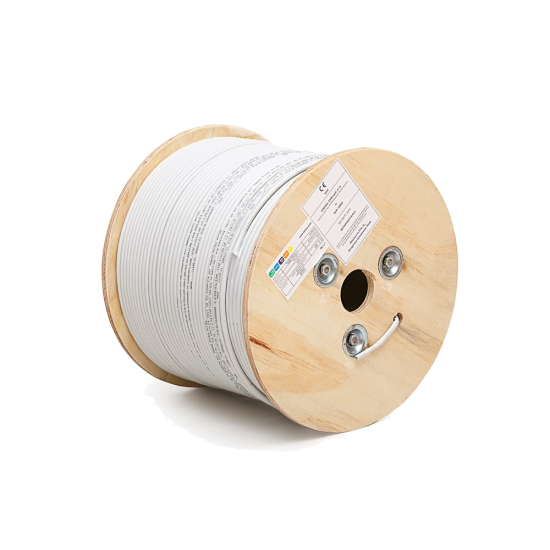

- packaging: 500m on reel
| Min. bending radius - installation | 56 mm |
| Min. bending radius - operation | 28 mm |
| Max. tensile load | 100 N (10 kg) |
| Temperature range - installation | 0 °C to +50 °C |
| Temperature range - operation | -20 °C to +60 °C |
| Outer cable diameter | 7,0 mm |
| Copper conductor diameter | AWG 23 |
| NVP | 75% |
| Reaction to fire | Dca - s2, d1, a1 |
| Fire safety | flame retardant, low smoke, zero halogen, non-corrosive |
