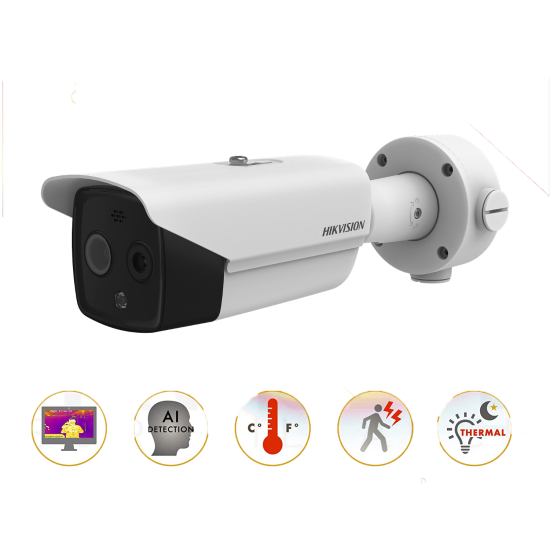

DS-2TD2617B-3/PA(B)

Awaiting delivery

Combined housing thermographic IP camera for measuring the temperature of the human face with an accuracy of ±0.5°С

• Combined thermographic IP camera HikvisionDS-2TD2617B-3/PA(B) for measuring the temperature of the human face with an accuracy of ±0.5°C
• Ability to set a temperature threshold and sound alarm when exceeding
• High accuracy and easyinstallation make them an effective means of health protection and prevention in epidemiological conditions.
• AI algorithm for face detection
• Viewing modes: combined (bi-spectrum image fusion), Picture-in-picture, independent (Image switching)

Thermal imaging camera:

• uncooled vox sensor 160x120@25 cad/sec (output resolution 320x240)
• Sensitivity (NETD) <40mk
• Pixel interval 17 µm
• Lens 3 mm (horizontal viewing angle: 50°)
• Ability to detect the temperature of faces at a distance of up to 2 m
• Installation height: 1.5 m
• Smart functions with Deep Learning algorithm:
• detection: crossing a line
• entering a zone
• exiting a zone
• temperature detection (30°C ~ 45°C)
• fire detection

Daytime CCTV camera

• 1/2.7" Progressive Scan CMOS with high sensitivity< /li>
• 4.0 Megapixel (2688×1520@25 fps) video surveillance resolution
• Minimum illumination: 0.0089Lux (Color)/ 0.0018Lux (B/W)
• Lens: f=4mm
• Intelligent IR illumination up to 15m
• 120db WDR
• 3D DNR filter
• Mechanical IR filter< /li>
• H.265+/H.264+/MJPEG dual stream compression
• Audio input/output
• 1 alarm input/1 output
• Micro SDXC card slot (up to 256GB)
• Operating temperature: -20°C~+50°C
• For outdoor mounting (IP66)
• Built-in lightning protection
• Power supply: 12Vdc/PoE/6W
• Dimensions: 358.3 mm × 113.5 mm x 115.2 mm
• Weight: 1.76 kg
