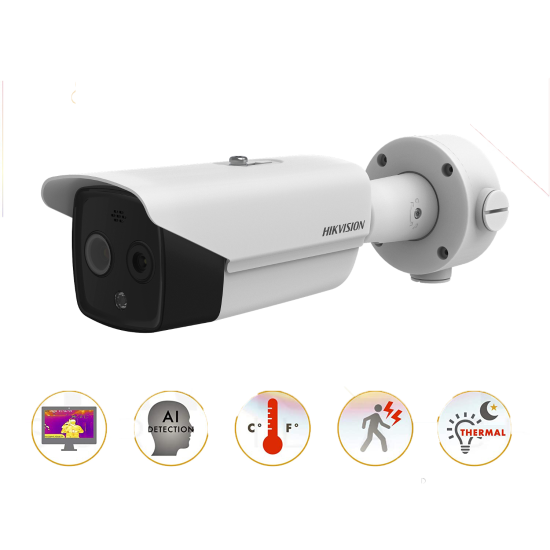

DS-2TD2637B-10/P

Combined thermographic IP camera HikvisionDS-2TD2637B-10/P for measuring the temperature of the human face with an accuracy of +0.5°C up to 7 m

Possibility to set a temperature threshold and sound alarm when exceeded

High accuracy and easyinstallation make them an effective means of health protection and prevention in epidemiological conditions.

AI face detection algorithm

View modes: combined (bi-spectrum image fusion), Picture-in-picture, standalone (Image switching)

• Thermal imaging camera :
• uncooled vox sensor 384x288@25 cad/sec (output resolution 384x288)
• Sensitivity (NETD) <50mk
• Pixel interval 17 µm< /li>
• Lens 10 mm (horizontal viewing angle: 50°)
• Ability to detect the temperature of persons at a distance of 3.0 to 7.0 m
• Mounting height : 1.7 m
• Intelligent functions with Deep Learning detection algorithm:
• crossing a line
• entering a zone
• exiting a zone< /li>
• temperature detection (30°C ~ 45°C)
• fire detection
• Daytime video surveillance camera
• 1/2.7" Progressive Scan CMOS with high sensitivity
• 4.0 Megapixel (2688×1520@25 fps) video surveillance resolution
• Minimum illumination: 0.0089Lux (Color)/ 0.0018Lux (B/W)
• Lens: f=6mm
• Intelligent IR illumination up to 40m
• 120db WDR
• 3D DNR filter
• Mechanical IR filter
• H.265+/H.264+/MJPEG dual stream compression
• Audio input/output
• 2 alarm inputs/2 alarm outputs
• Micro SDXC card slot (up to 128GB)
• Operating temperature: -10°C~+35°C
• For outdoor installation (IP66)
• Built-in lightning protection
• Power supply: 24 VAC ± 25%; 12 VDC ± 25%; PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A
• Consumption: 18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W
• Dimensions: 376.1 mm × 119.1 mm x 118.1 mm
• Weight: 1.82 kg

"
