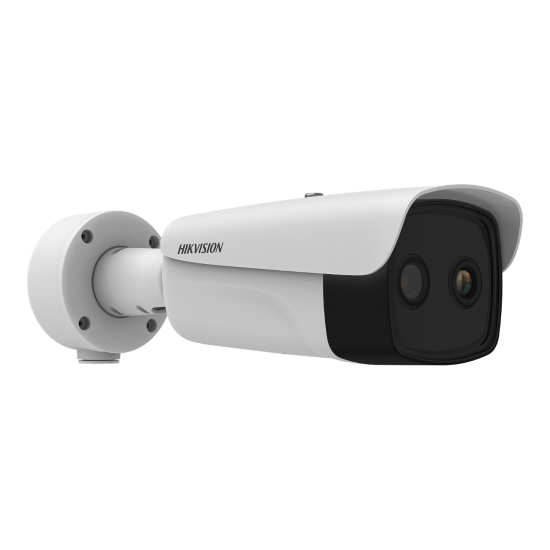

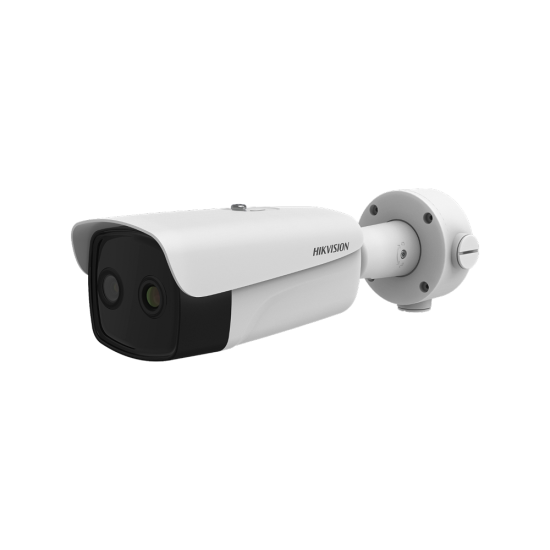

DS-2TD2637-15/P(B)
Combined thermal imaging/daily IP camera for video surveillance
DS-2TD2637-15/P(B)
Awaiting delivery
Combined thermal imaging/daily IP camera for video surveillance
- Combined thermal imaging/day IP camera with different modes: combined (bi-spectrum image fusion)/Picture-in-picture/standalone (Image switching)
- Thermal imaging camera: uncooled vox sensor 384x288@25 cad/sec
- Sensitivity (NETD) <35mk
- Pixel interval 17 µm
- Thermal lens f = 15mm (horizontal viewing angle: 24.5°)
- Capable of detecting people at a distance of up to 441 m (1.8×0.5m), cars up to 1353 m (4.0×1.4m)< /li>
- Intelligent functions/detection: line crossing, zone entry/exit, temperature detection (±8°C), fire detection
- Built-in light and sound alarm for active prevention
- AGC
- DDE (Digital Detail Enhacement)
- 3D DNR
- Daytime camera : 1/2.7" Progressive Scan CMOS with high sensitivity
- 4.0 Megapixel (2688×1520@25fps) video surveillance resolution
- 0.0089Lux (Color)/ 0.0018Lux (B/W) CCTV sensor
- Lens f=6mm (horizontal viewing angle 51.7°)
- Intelligent IR illumination up to 40m
- 120db WDR
- 3D DNR filter
- Mechanical IR filter
- H.264+/MJPEG dual stream compression< /li>
- Audio input/output
- 2 alarm inputs/2 outputs
- Analog BNC output
- Slot for micro SDXC card (up to 128 GB)
- For outdoor mounting (IP67): -40°C~+65°C
- Built-in lightning protection
- Power supply: 12Vdc/PoE 9.5W
- Mounting base included
- Dimensions: 376.1 mm × 119.1 mm x 118.1 mm
