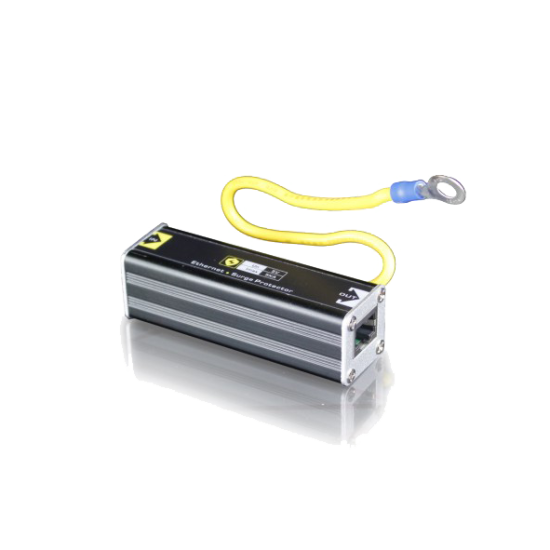

USP201E

Available

Lightning protection over Ethernet LAN cable

USP201E is a 1-channel lightning arrester designed according to standard B/T18802.21-2004/IEC61643-21:2000. The device works with a 5V working voltage, it can work continuously at a voltage of 6V, with a voltage limit below 20V. Multi-grade protection, Large maximum discharge current, voltage limits, fast response time.

USP201E is adapted to provide lightning protection to network switches, hubs, network cards, computers, network video surveillance devices … preventing surge losses, sudden voltage changes.

• Standard: GB/T18802.21-2004/IEC61643-21:2000
• Ethernet signal protection (Bandwidth > 100Mbps )
• Ground mode – extension line to the ground
• RJ45 port to connect to the communication line
• Operating voltage: 5V
• Maximum operating voltage during continuous operation: 6V
• Maximum discharge current (8/20μs): 1-2 0.3KA, 3-6 0.3KA, 1,2,3,6-PE 2KA
• Impulse voltage limiting (10/700&mu ;s): 1-2 <20V, 3-6 <20V
• Insulation resistance ≥0.4MΩ
• Communication line width: 100Mbps
< li>Response time: ≤1ns
• Operating temperature: -20?55?
• Dimensions(LxWxH): 84mm×25mm×25mm
• Body material: Aluminum
